Intel Arc B580 Limited Edition with Battlemage Xe2 architecture, equipped with 12 GB VRAM, offers an impressive performance-to-price ratio.

After the Alchemist generation with a lot of potential but also many challenges, especially in terms of stability and driver optimization, the Battlemage generation and specifically the Arc B580 promises to bring a breakthrough. Xe2 overcomes the weaknesses of Xe, has a better hardware platform, higher performance and an accessible price. In addition, improvements in drivers and support features such as XeSS show Intel's seriousness in the consumer GPU segment.

Suggested retail price $249

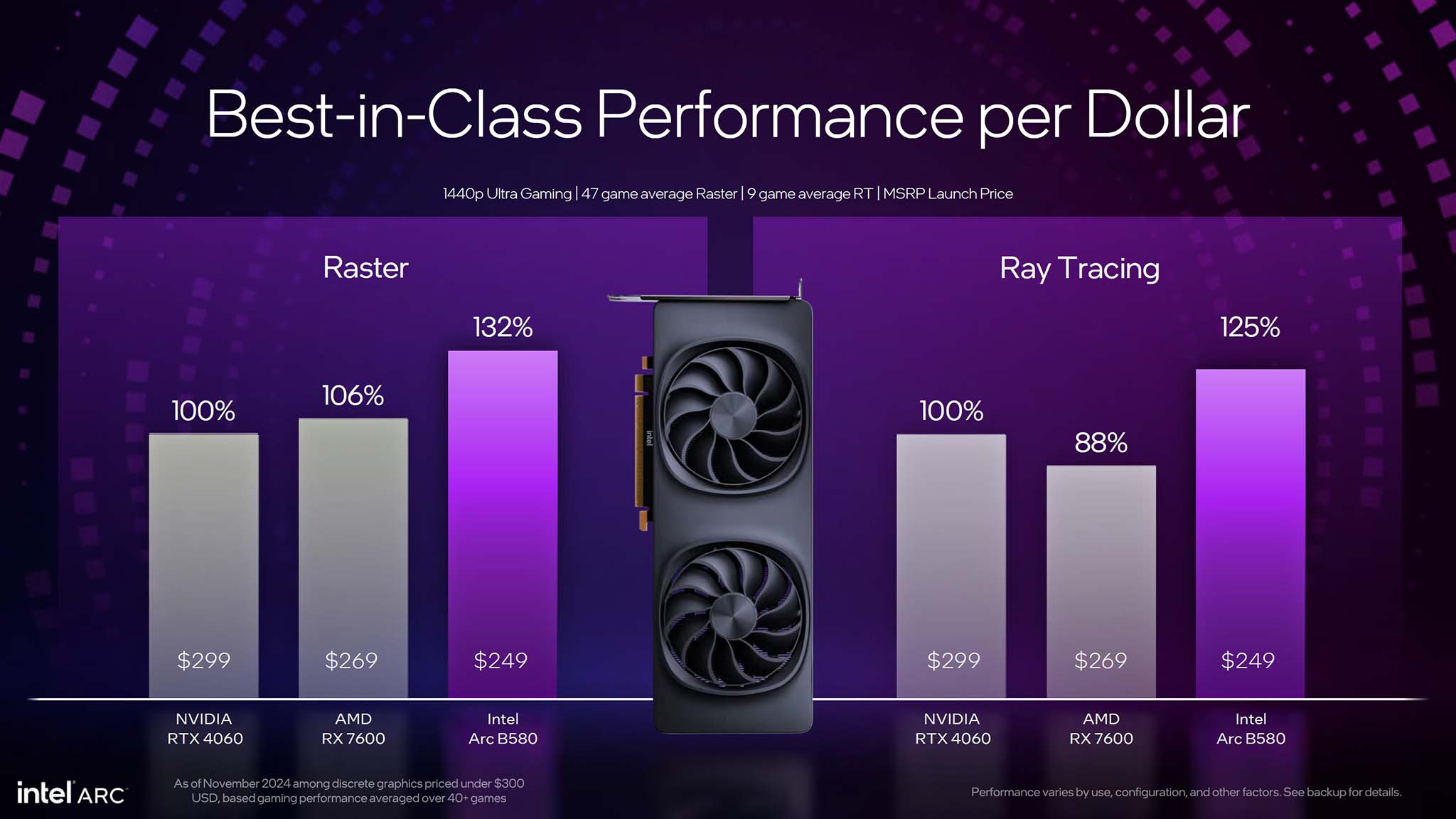

The Intel Arc B580 has a suggested retail price (MSRP) of just $249, aiming directly at the large mainstream segment that lacks worthy options from NVIDIA or AMD. When it launches in late 2024, the Intel Arc B580 will have competitors such as the NVIDIA GeForce RTX 4060 (MSRP $299) and AMD Radeon RX 7600 (MSRP $269). When it launches, the Intel Arc B580 promises to deliver higher performance at a more attractive investment cost.

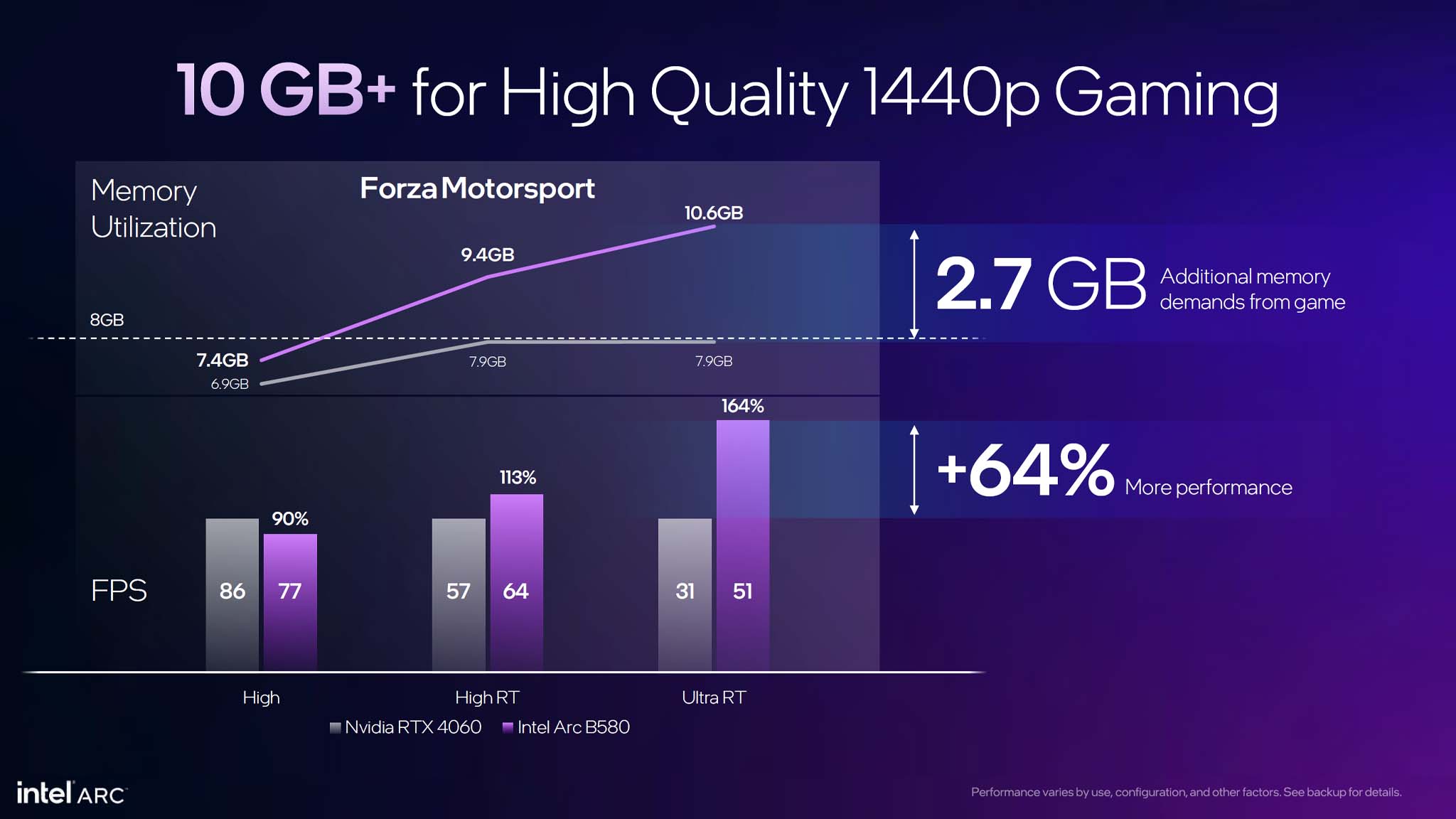

Not to mention the deep performance numbers, what makes it easy for users to see and has a positive impact on the purchase decision is the 12 GB VRAM capacity on the Intel Arc B580. This is a direct attack on the inherent weakness of competitors, which are usually limited to 8 GB VRAM in the same price segment. In the context of new generation games requiring more graphics memory, the Intel Arc B580 brings the advantage of performance at high resolutions and maximum graphics settings. In addition, it also creates added value in terms of future-proofing, for customers who want to invest once for many years of use.

When Intel saw a gap in the market, it immediately “filled in the blank”. In recent years, NVIDIA and AMD have tended to focus on boosting performance and price in the high-end segment, almost leaving the sub-$300 segment open. With the Arc B580, Intel not only “entered the war” with the weapon of performance-to-price ratio, but also positioned itself as a brand that understands and meets the needs of the majority of gamers. Not just for show, Intel is really serious and takes care of everything from hardware, performance to software and features for the Arc GPU.

Xe2 “Battlemage” Architecture

GPU BMG-G21

The heart of the Intel Arc B580 is the BMG-G21 graphics processor (GPU), manufactured on TSMC's N5 (5 nm) process, containing 19.6 billion transistors on a monolithic die with an area of 272 mm². Although the transistor density has been improved compared to the Alchemist generation, at 72.1 million/mm², Battlemage is still lower than competing architectures such as NVIDIA's Ada Lovelace and AMD's RDNA 3. This partly explains why the B580 has a relatively high power consumption (TBP 190 W) compared to the performance it brings.

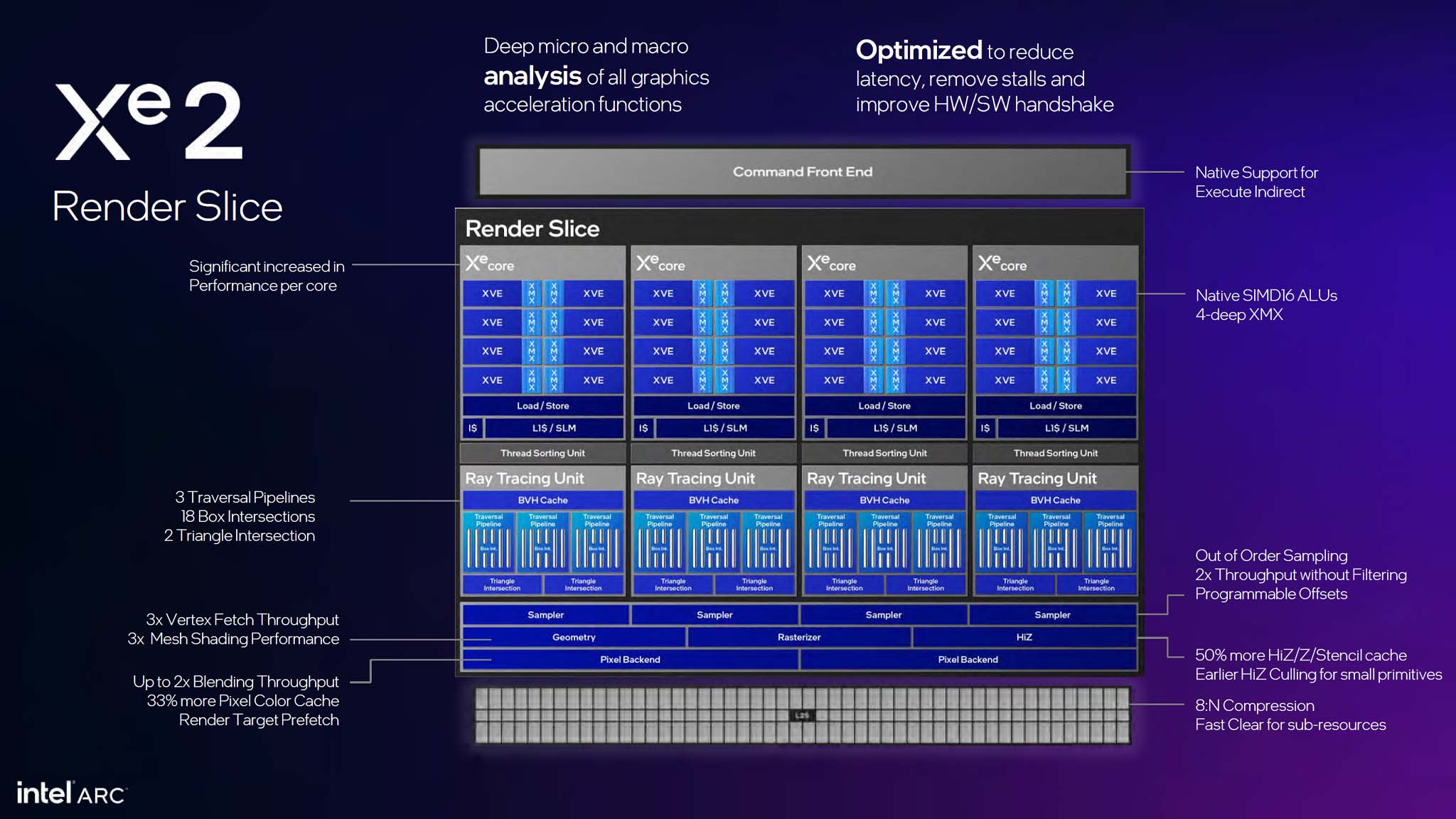

Structurally, the BMG-G21 GPU is more scientifically organized with Global Dispatch responsible for dividing work among 5 Render Slices. These Slices communicate with each other and with the memory system through a shared L2 Cache with a capacity of 18 MB.

Core Generation 2

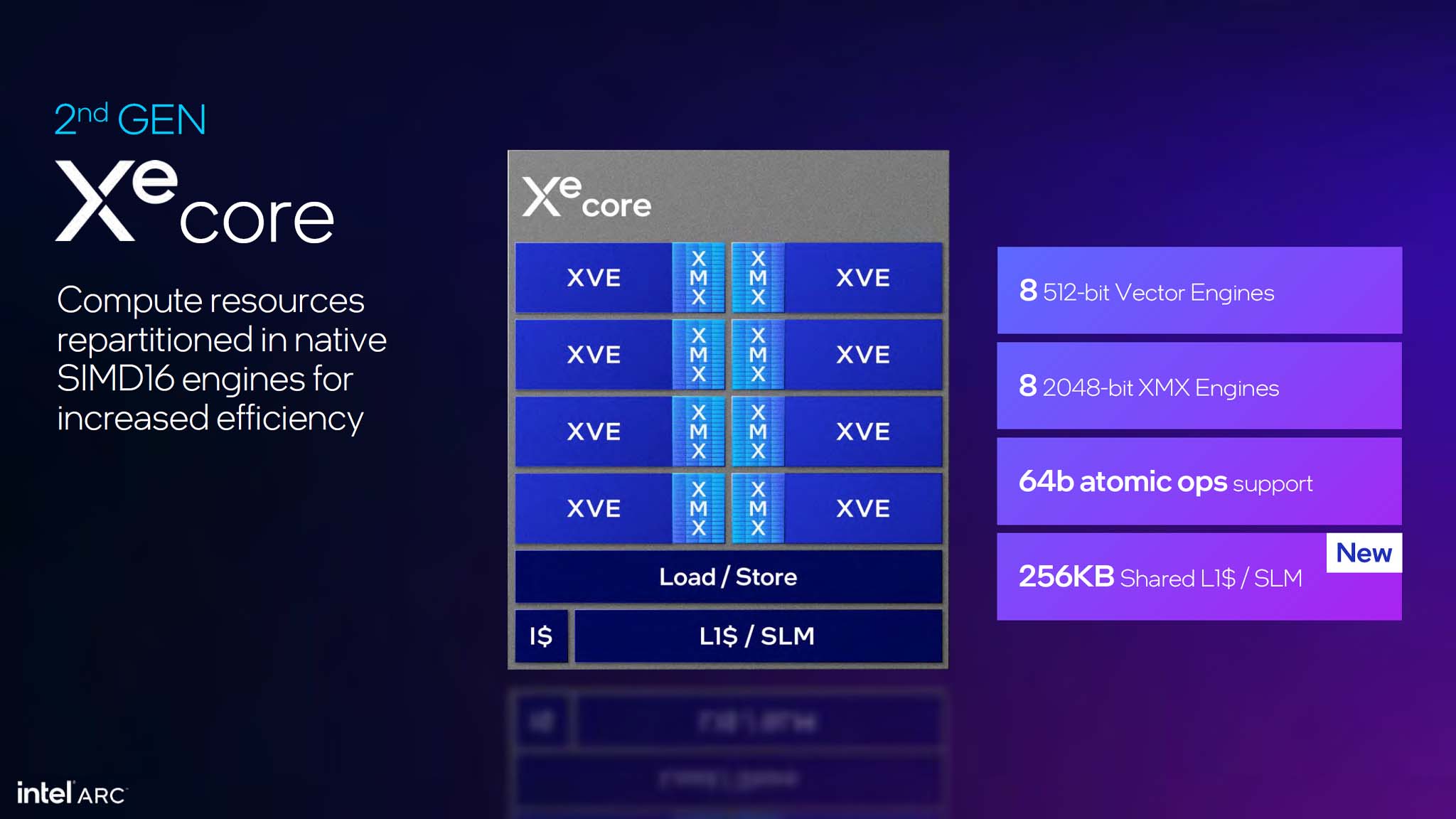

The Battlemage architecture’s core processor is the second-generation Xe Core, which has been completely redesigned for performance and energy efficiency. The entire B580 GPU contains 20 Xe Cores. Each Xe Core contains 8 512-bit Vector Engines (XVEs), bringing the total number of XVEs to 160. The most important platform improvement is that these XVEs now support native SIMD16 instructions, instead of SIMD8 on Alchemist, which improves parallelism and compatibility with modern game engines.

Thanks to these improvements, Intel claims a 70% increase in performance per Xe Core and a 50% increase in energy efficiency compared to the previous generation. This improvement is not only due to the increase in operating frequency but also from optimizing IPC (instructions per cycle), reducing latency and eliminating bottlenecks in the processing pipeline. In addition, each Xe Core also integrates 8 XMX Engines, dedicated to artificial intelligence (AI) tasks. With a total of 160 XMX Engines, the Arc B580 is capable of providing INT8 computing power of up to 233 TOPS, playing a key role in XeSS image upscaling technology and other AI applications.

Dedicated hardware upgrade

The Alchemist generation had hardware limitations, specifically in the silicon design, so the Intel Arc A Series had performance issues that were often blamed on unfinished drivers. While Alchemist previously had to emulate some graphics commands in software, Battlemage handled them in hardware. Commands like Execute Indirect (commonly used in Unreal Engine 5) were handled directly by hardware on Battlemage, increasing speed by up to 12.5 times. Similarly, the Fast Clear command was also more efficient. Battlemage's changes reduced the load on the CPU and drivers (CPU Overhead or Driver Overhead issues), improving graphics performance, especially for modern games.

Other dedicated hardware units have also been upgraded, such as the second generation Ray Tracing Unit (RTU). Each RTU now has 3 Traversal Pipelines (50% performance increase) and 2 triangle intersection units (double the performance). The BVH buffer size has also been doubled to 16 KB. These improvements significantly speed up ray tracing tasks. As for the Geometry Engine and Sampler, Mesh Shading and Vertex Fetch performance has been increased by 3x, while non-filtered texturing and blending performance has been doubled.

Graphics Memory

To meet the demands of new, more powerful hardware, the Arc B580 is equipped with 12GB of GDDR6 graphics memory. The VRAM operates at 19Gbps with a 192-bit bus width, providing a total graphics memory bandwidth of 456GBps. Compared to the Arc A580, which has a bus width of up to 256bits, the Battlemage generation compensates with higher memory speeds, ensuring sufficient data supply to the GPU, especially at 1440p resolution.

The Intel Arc B580 uses the PCI-Express 4.0 standard with 8 lanes (x8). Although theoretically only half the lanes of a full x16 interface, the bandwidth of PCIe 4.0 x8 is completely sufficient for a GPU option in the mainstream segment, causing no significant bottlenecks in normal usage needs.

Intel XeSS 2

Intel Xe Super Sampling Generation 2 or XeSS 2 is not simply an image upscaling technology as its name suggests, but more precisely, it is a solution set consisting of 3 components: XeSS Super Resolution (SR), XeSS Frame Generation (FG) and Xe Low Latency (LL).

XeSS Super Resolution (SR) is an AI-based resolution upscaling technology that leverages the power of XMX cores. It renders the game at a lower resolution, then uses a trained neural network to reconstruct the image at the target resolution. In terms of image quality, XeSS SR is highly regarded, often producing sharper and more stable results than AMD's FSR. However, in some cases, XeSS SR is still not quite on par with NVIDIA's DLSS in terms of handling small details in motion.

XeSS Frame Generation (FG) and Xe Low Latency (LL) work similarly to their competitors. XeSS FG uses motion vectors and optical flow to create entirely new frames and insert them between traditionally rendered frames, significantly increasing frame rates (FPS). As for the side effect of frame generation—input lag—Intel Xe Low Latency (LL) technology optimizes the render queue, reducing the time between when a user performs an action and when it appears on screen.

As of mid-2025, XeSS is supported in over 200 titles. However, the number of games that support the full feature set of XeSS 2, especially Frame Generation, is still limited but growing rapidly. Many major titles have and will support XeSS 2, such as Diablo IV, Assassin's Creed Shadows, Black Myth: Wukong and Civilization VII, indicating that developers are increasingly adopting it.

Media Engine Vehicle

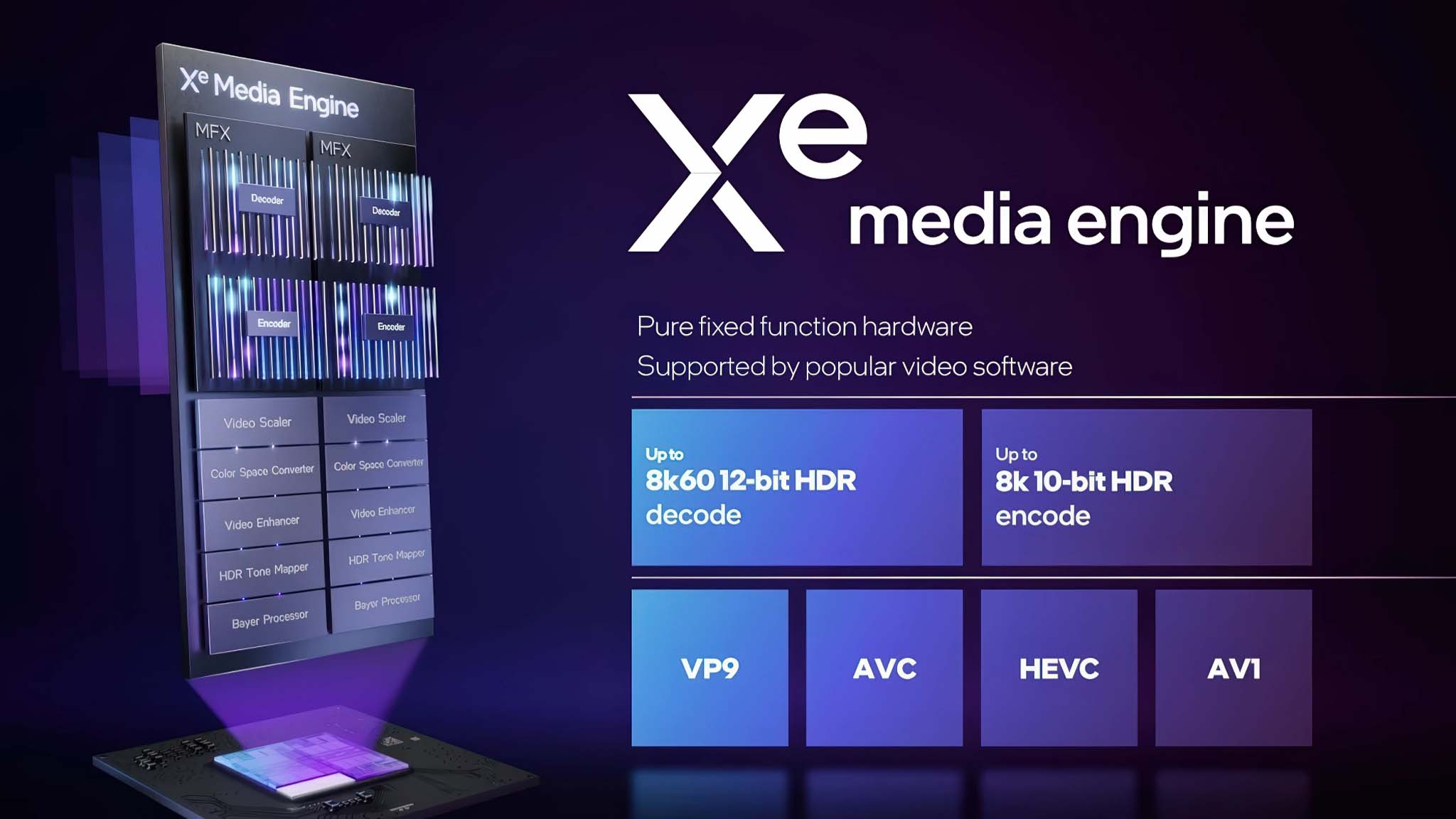

The Intel Arc B580 features two multi-format transcoder (MFX) engines, providing hardware encoding and decoding for the most popular video codecs today, including AV1, H.265 (HEVC), H.264 and VP9. The Arc B580’s unique competitive advantage in the content creation space is its hardware decoding of the 10-bit HEVC 4:2:2 codec. This format is popular in professional workflows, but is often not supported by hardware acceleration on competitor’s mainstream graphics cards.

In real-world testing, Intel's AV1 encoder provides better image quality than the H.264 encoder (NVIDIA's NVENC and AMD's VCN) at the same bitrate, especially when streaming at lower bitrates. This reduces network bandwidth requirements while maintaining good image quality. However, there are still occasional performance issues when streaming using the older H.264 codec via applications like Discord.

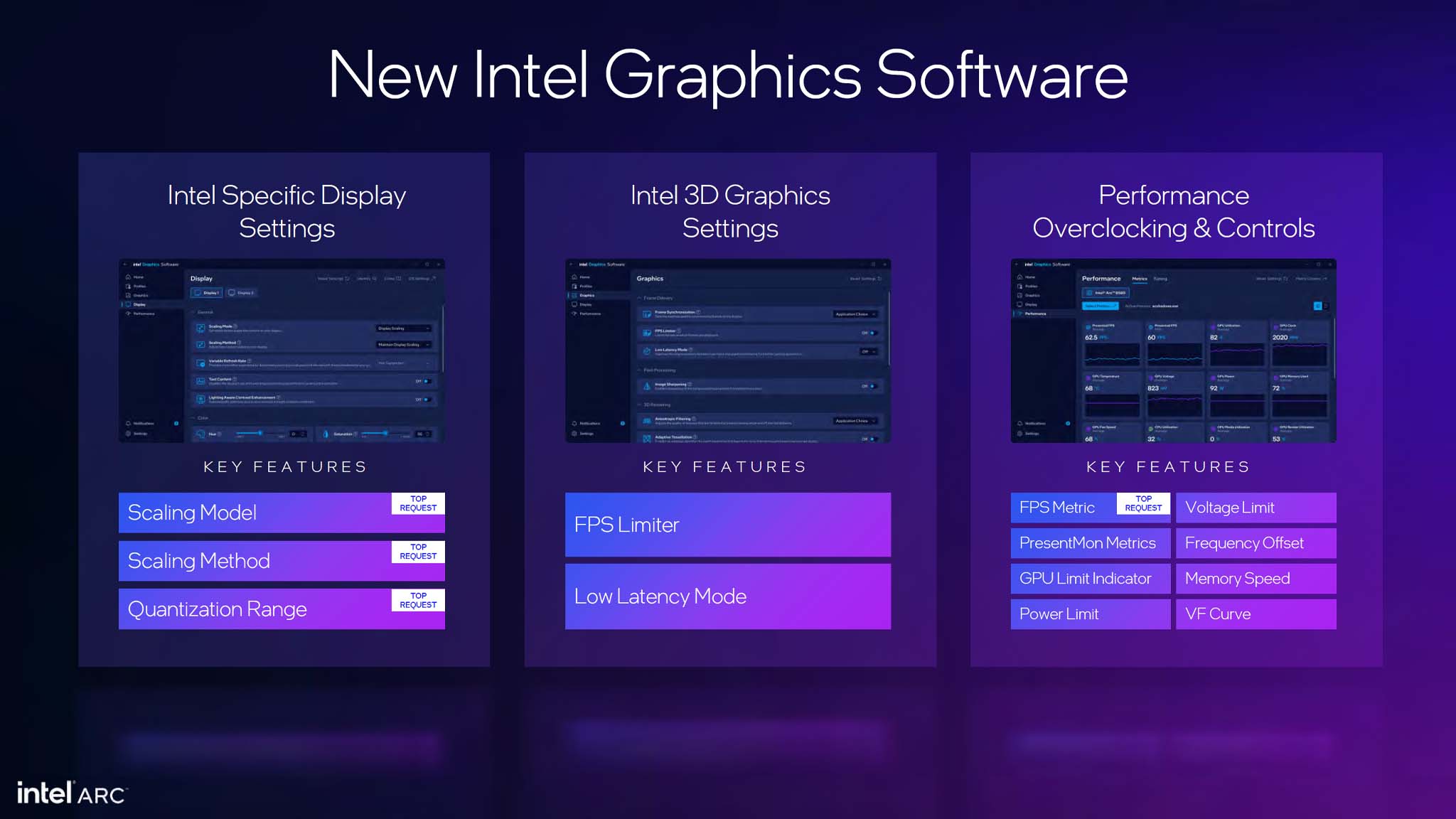

Improve driver

When it comes to graphics card drivers, perhaps users and media channels are being too harsh on Intel. If you look closely, you will see that NVIDIA is always highly regarded for its driver stability and optimization, while AMD cannot be compared, but what about Intel? In terms of time and closely related experience, Intel is very new to developing GPU drivers. To be fair, Intel is working very hard and has a commendable development speed and driver stability. Since the appearance of Alchemist, compatibility and performance issues with older games using DirectX 9 and DirectX 11 APIs have been greatly improved and performance with modern APIs such as DirectX 12 and Vulkan is very competitive.

There is a problem that still exists today, which is CPU Overhead or Driver Overhead, as mentioned above. This is a phenomenon where GPU performance depends heavily on CPU processing speed. The reason is that Intel's driver requires the CPU to process a large number of draw calls before sending them to the GPU. This phenomenon has the most obvious impact when Arc B580 runs with older CPUs (Ryzen 3000/5000 Series, Intel Core 11th generation and earlier) or when playing games at low resolutions like 1080p. In these cases, Arc B580's performance can decrease by 15% to 40% compared to when used on a high-end CPU platform. To fully exploit Arc B580, like Alchemist, your system needs to support Resizable BAR, otherwise we have inadvertently limited the power of Battlemage.

Intel Arc B580 Limited Edition

The Intel Arc B580 Limited Edition, designed by Intel itself, has a minimalist and professional look. The card has a matte black main color tone, without using colorful RGB lights, except for the Intel Arc logo on the top edge that emits a soft white light. Compared to the previous Intel Arc A750 Limited Edition model that Migovi reviewed, the Arc B580's appearance has a few changes.

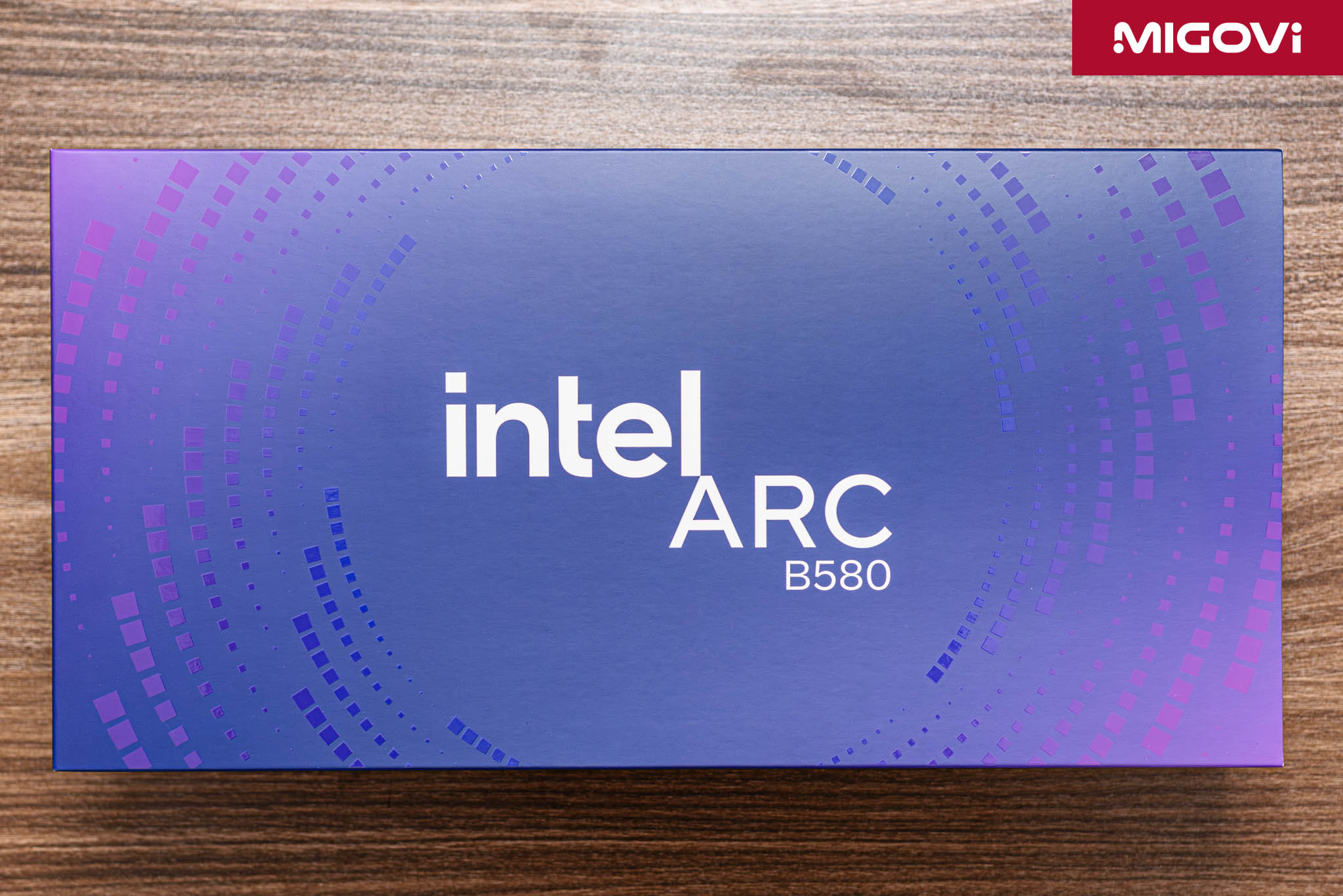

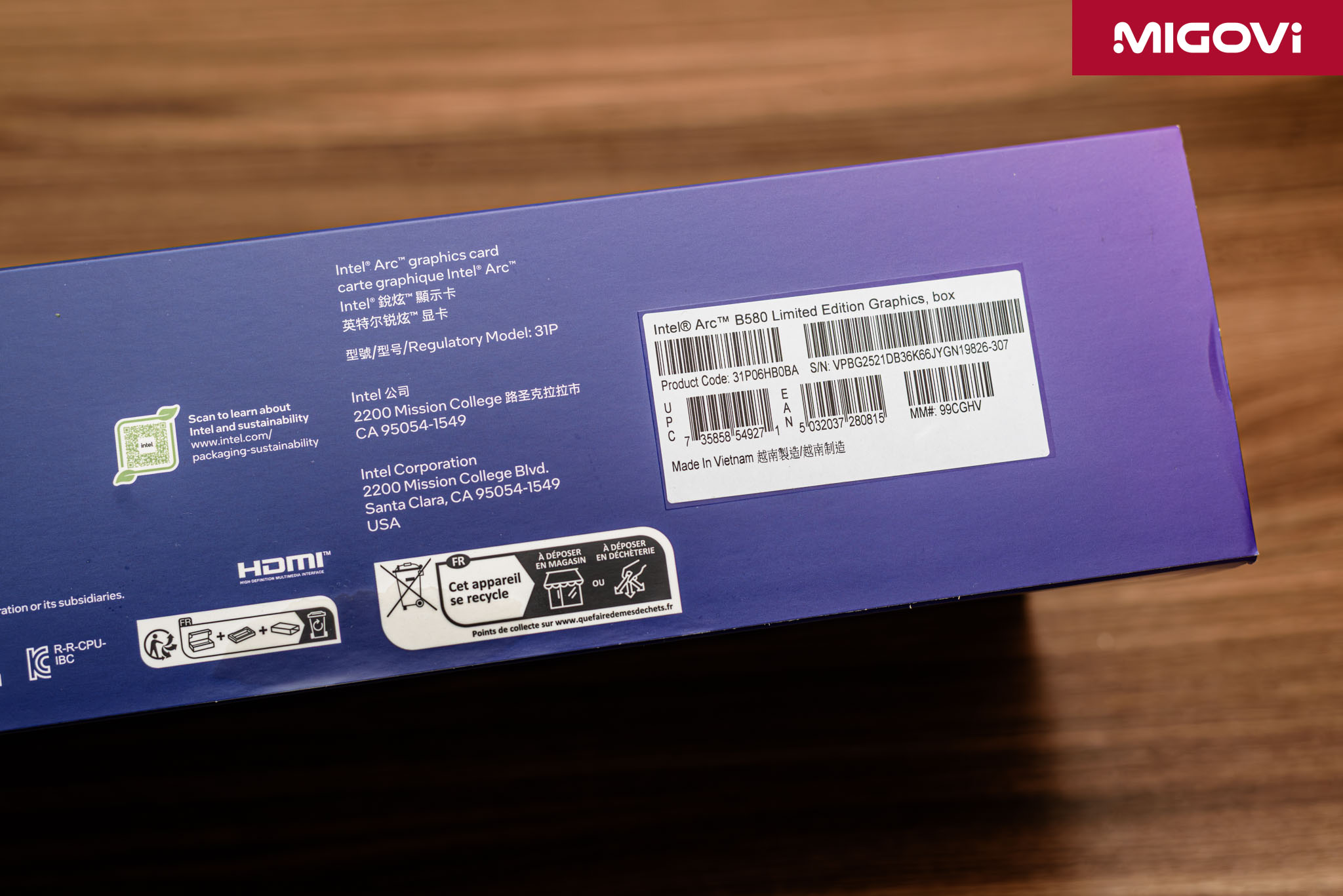

In terms of packaging, the Intel Arc B580 box is a bit more sophisticated with 2 layers. The special feature of the Arc B580 model that Migovi received from Intel Vietnam is the words "Made In Vietnam". This is an impressive and surprising point for a product like Battlemage.

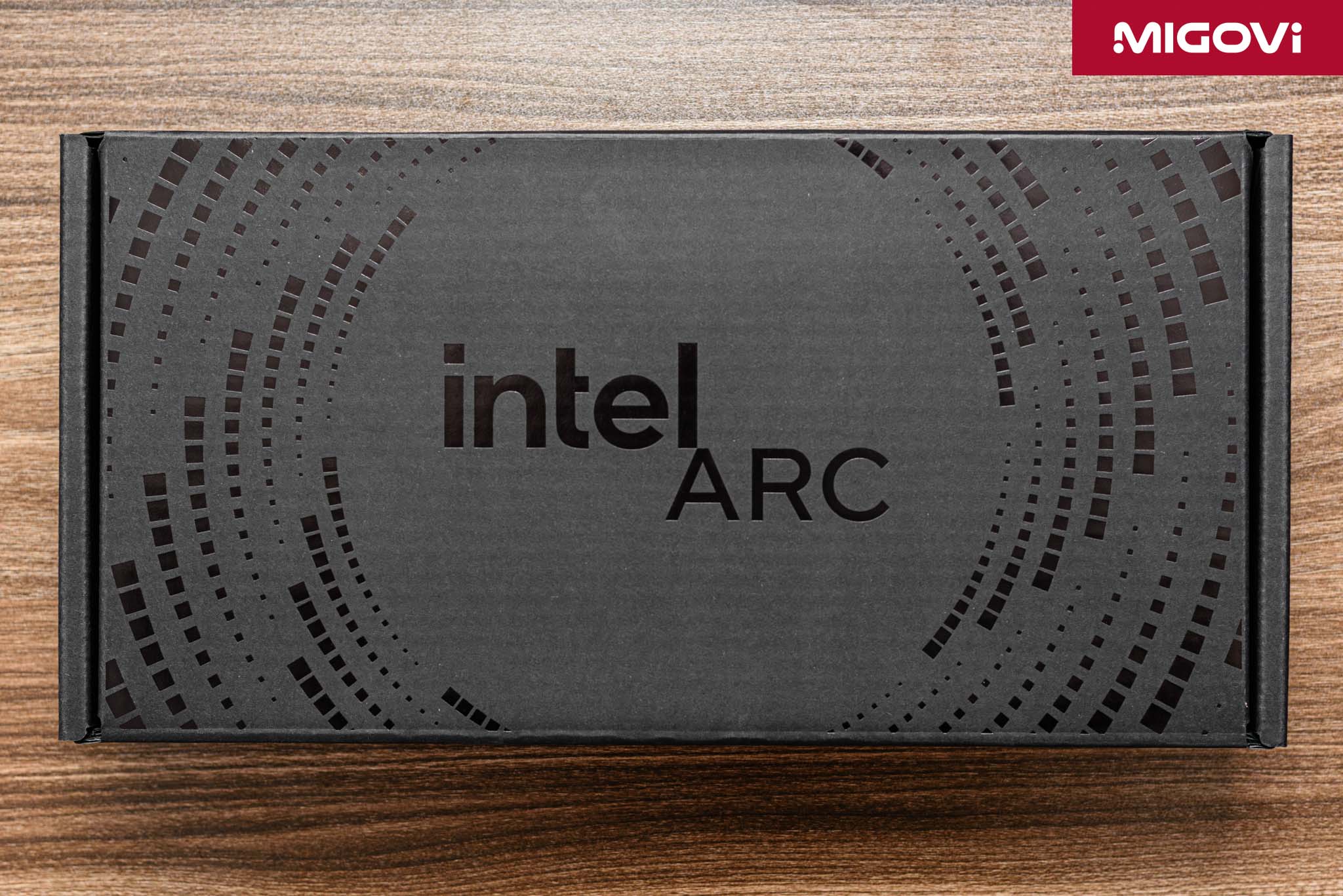

The inner box layer is just black with the same decoration and pattern as the outer layer.

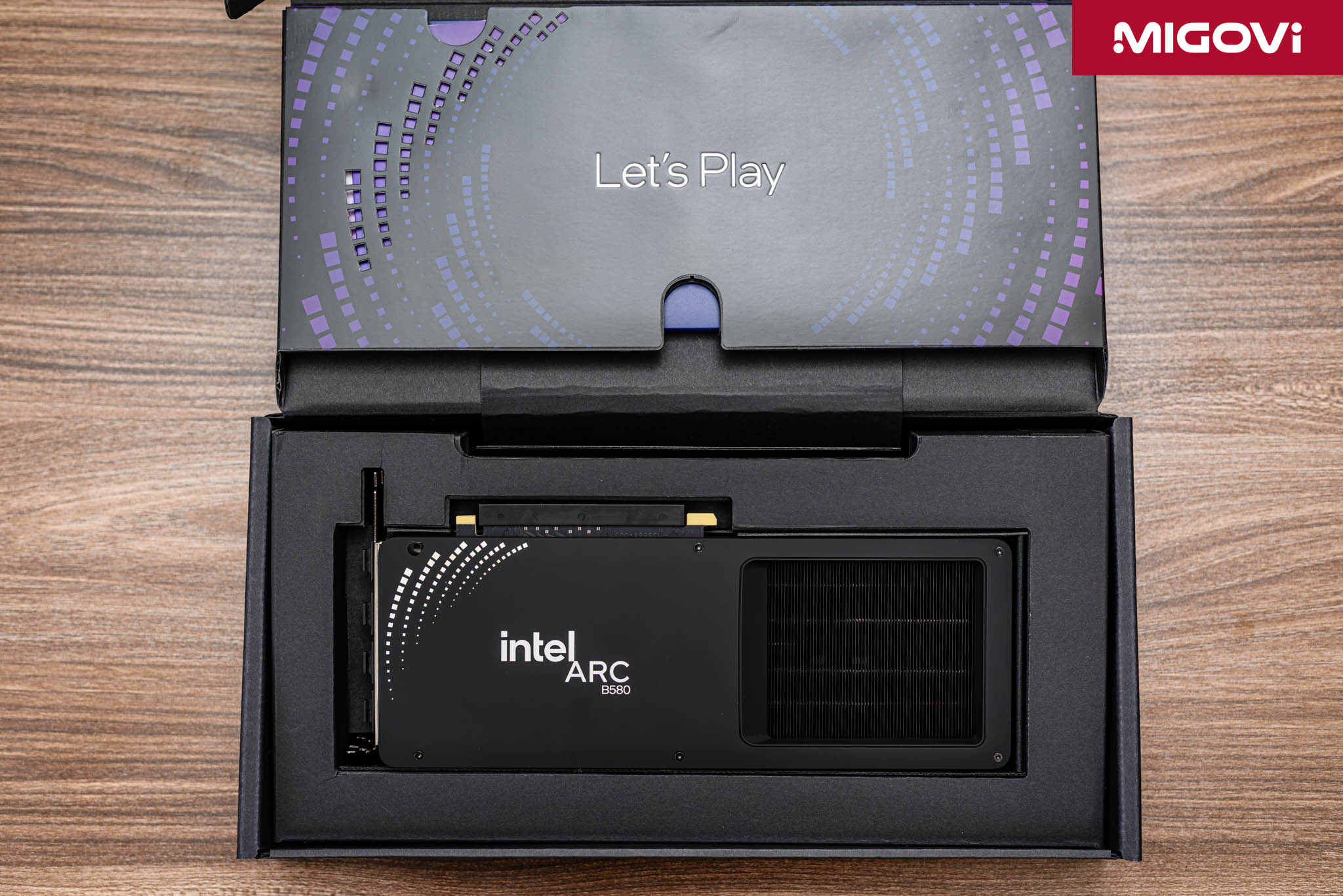

The clamshell-shaped box opens, containing documents, a paper assembly kit for decoration and a card cleaning cloth. It can be said that the accessories that come with the Intel Arc B580 Limited Edition are very fun and also show Intel's care for the products it designs itself.

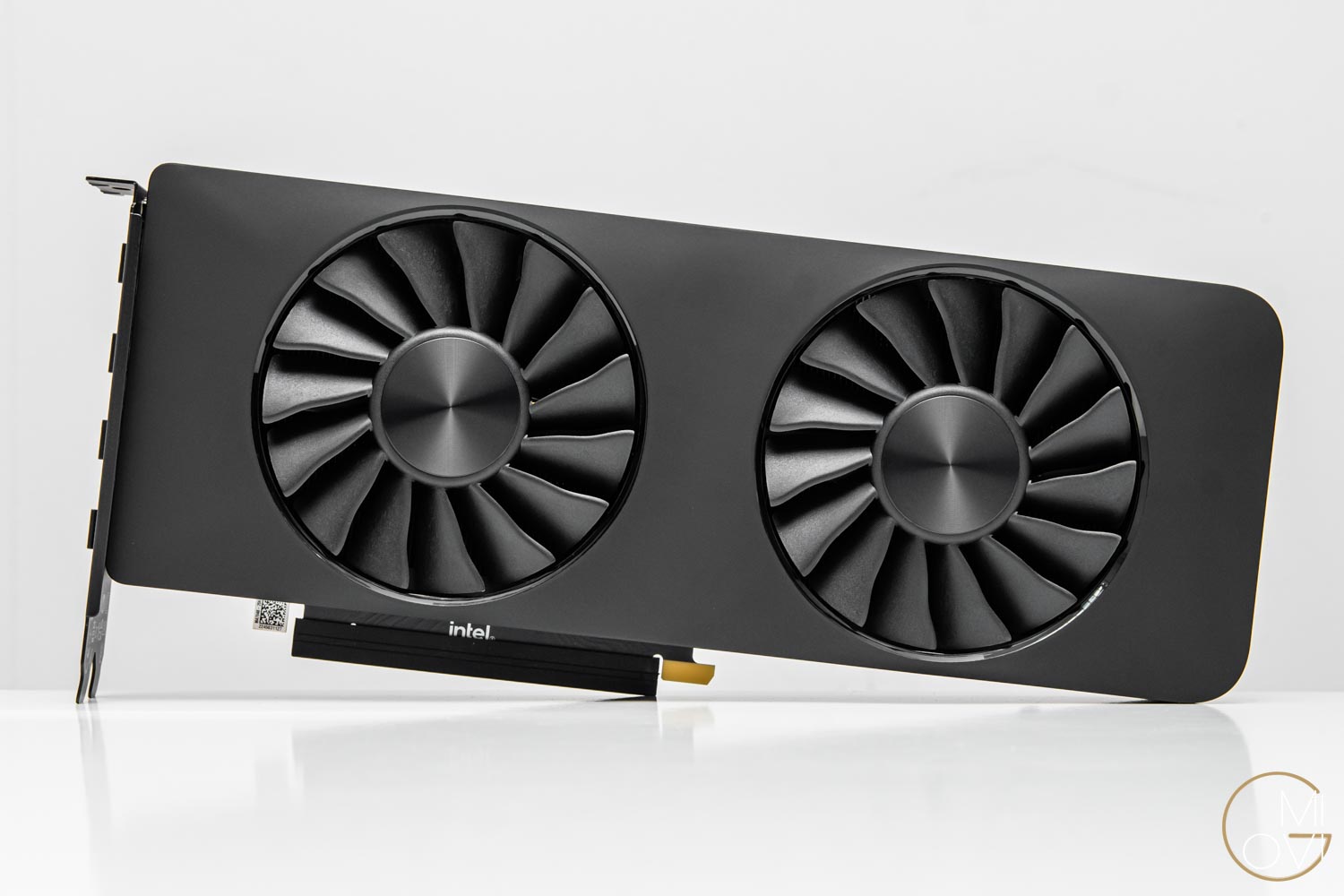

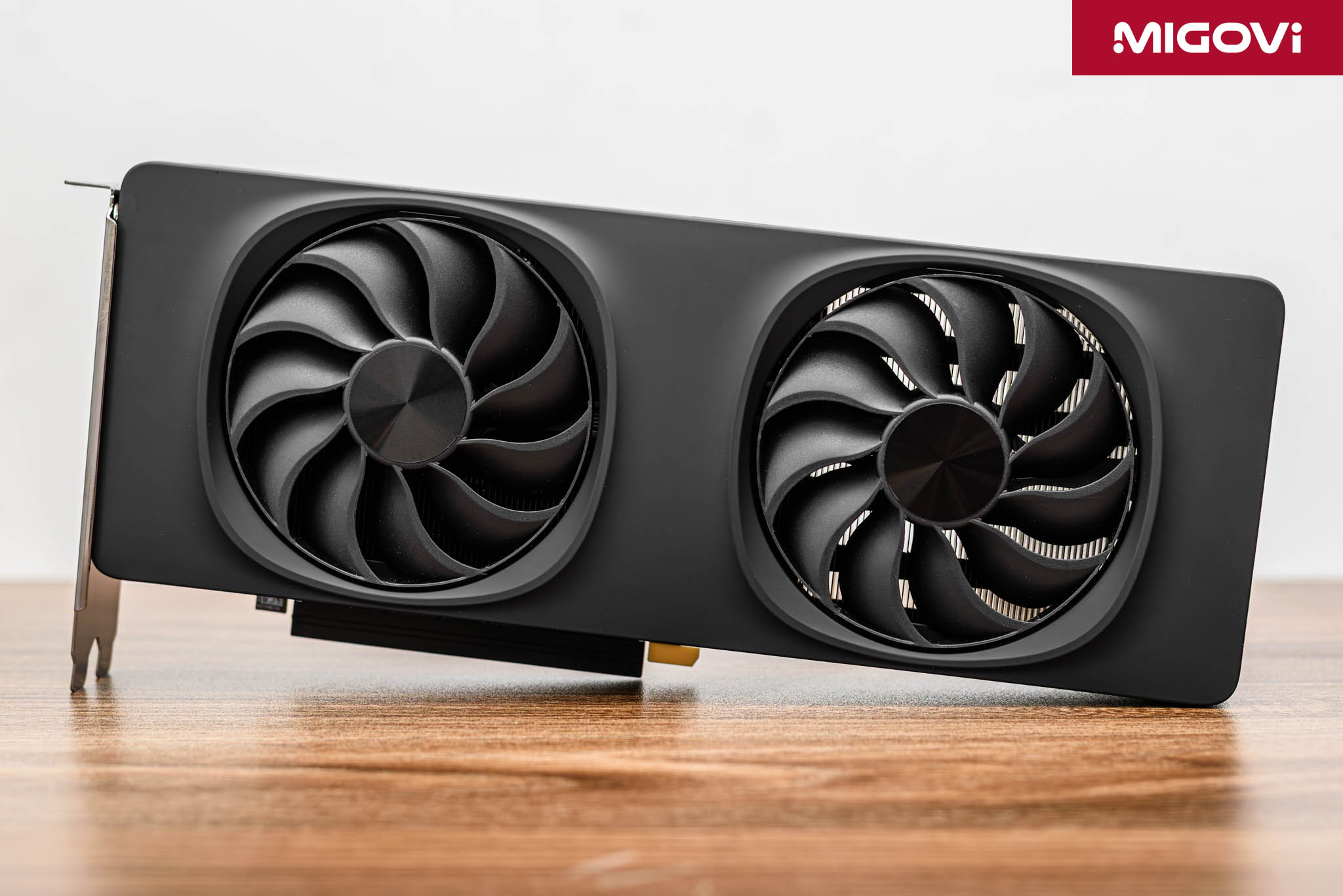

The most obvious change from Arc A750 to Arc B580 is the cooling fan frame. It is also 2 axial fans but instead of a circular frame, Arc B580 switches to a squircle frame - a hybrid between square and round.

The fan blades have also been reshaped for better cooling efficiency and a circular frame has been added to connect the blades together. This increases the fan's stability, creates a more efficient and even airflow and improves heat dissipation.

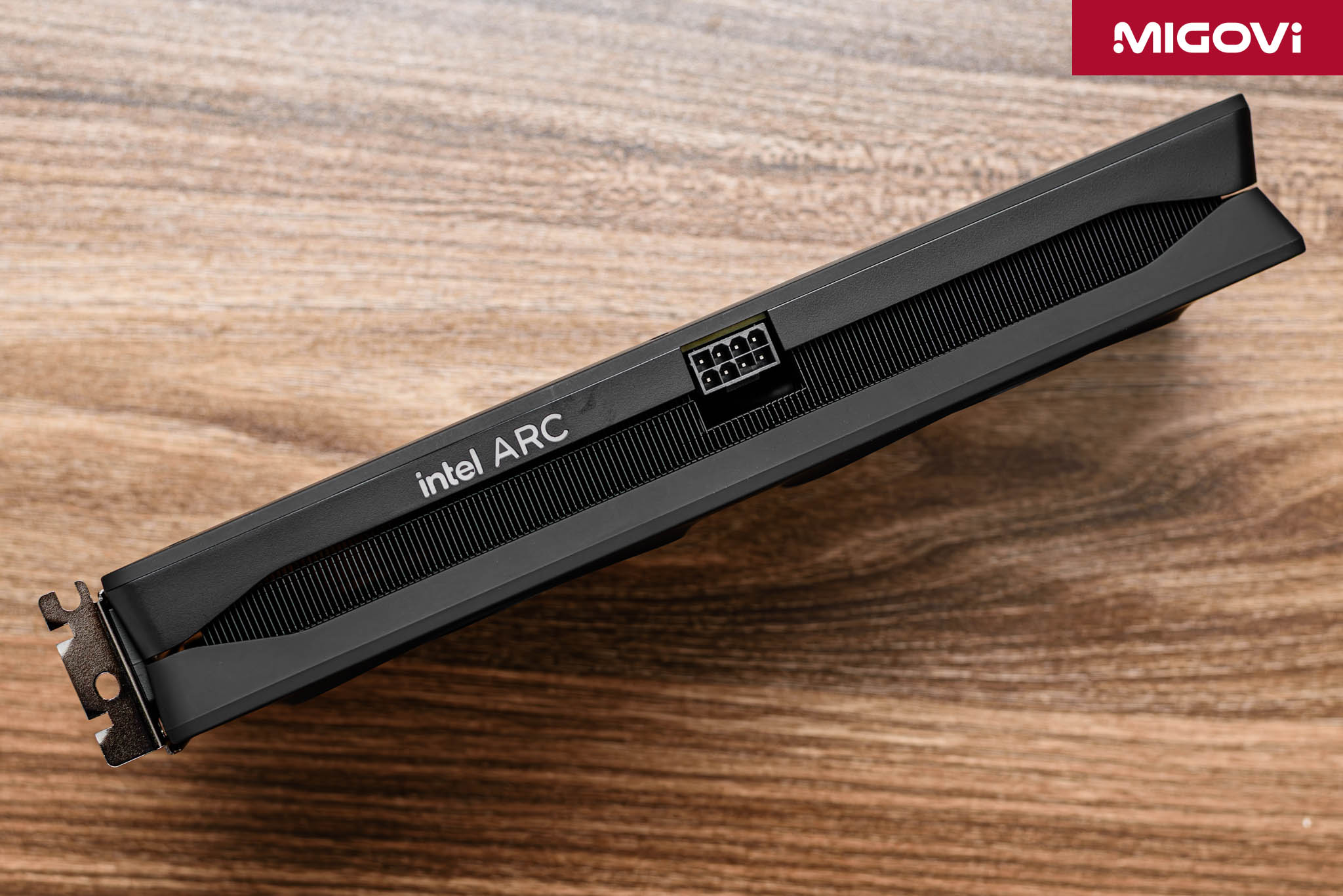

The Arc B580 Limited Edition's cooling system includes 2 fans, all components are placed in a frame that occupies 2 standard PCIe slots. Because the main board of the card is quite short, the auxiliary power connector is almost in the middle of the card body. Users need to supply power from 1 PCIe 6+2 pin for Intel Arc B580. The recommended power supply capacity is 600W or more.

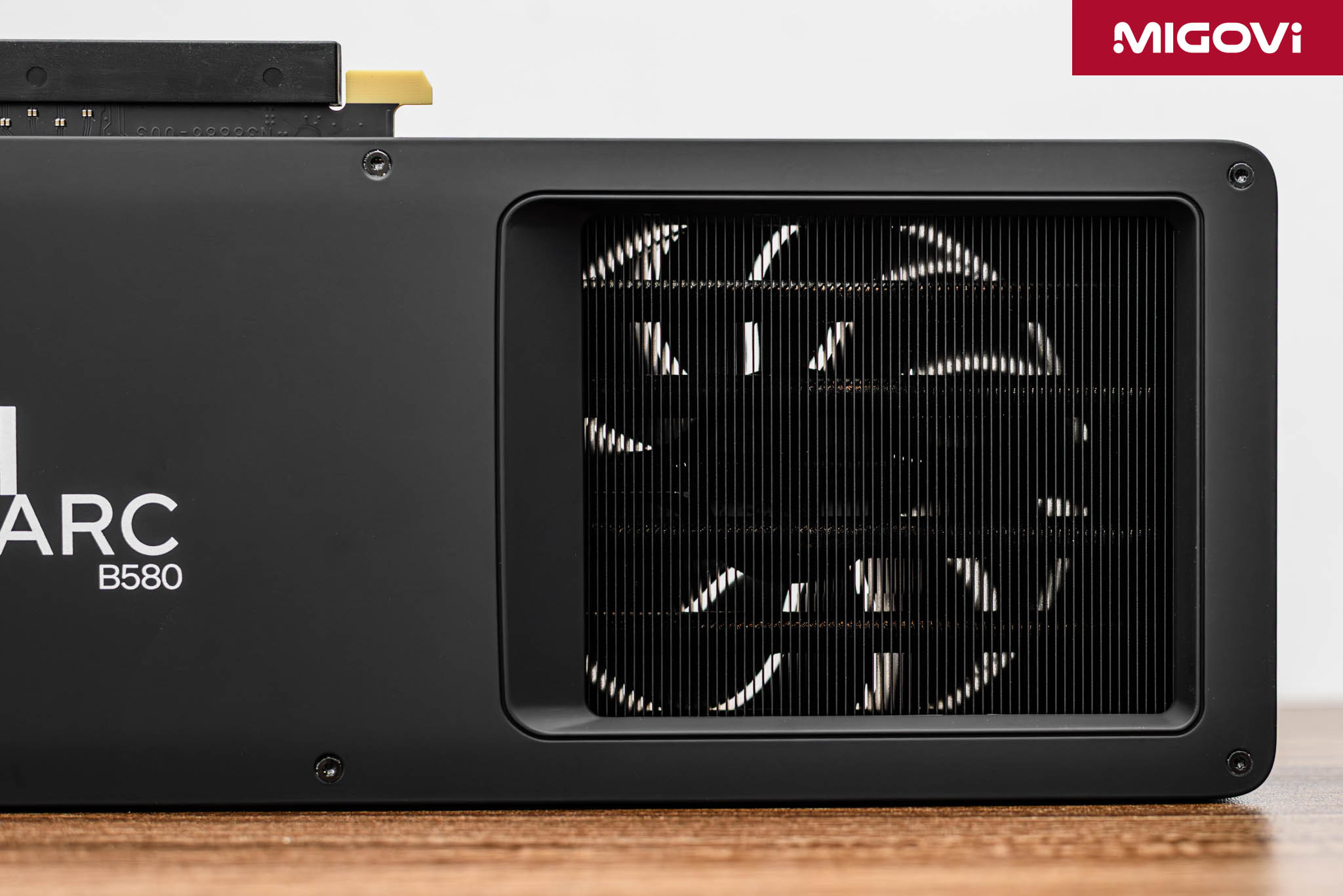

Thanks to the short PCB, more than 1/3 of the backplate at the back of the card is cut out, allowing the airflow from the fan to pass through the aluminum block and push it into the environment. This design enhances the overall cooling efficiency of the Arc B580 Limited Edition.

In terms of connectivity, the card is fully equipped with modern output ports, including 3 DisplayPort 2.1 ports and 1 HDMI 2.1a port, supporting maximum resolution up to 8K. The physical dimensions of the Arc B580 Limited Edition are 272 x 115 x 44 – 45 mm, relatively compact and easily compatible with many case sizes.

Test configuration

• CPU: Intel Core i7-14700K
• Mainboard: ASUS ROG MAXIMUS Z790 DARK HERO
• RAM: CORSAIR DOMINATOR TITANIUM DDR5-6000 32 GB x 2
• Cooler: Cooler Master MasterLiquid 360 ATMOS
• SSD: Kingston FURY Renegade G5 2 TB
• VGA: Intel Arc B580 Limited Edition
• PSU: CORSAIR RM1200x SHIFT
• Case: Lian Li O11 DYNAMIC EVO XL Black

Intel Arc B580 Limited Edition Performance

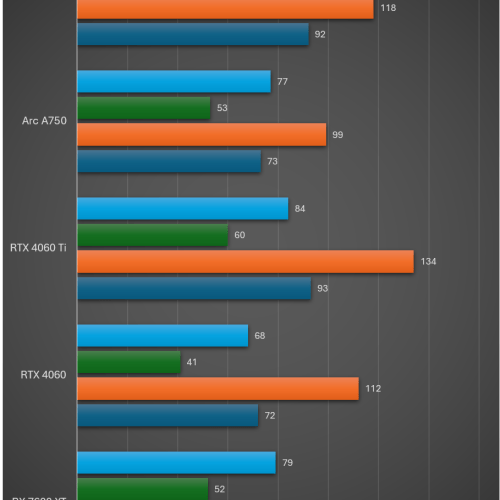

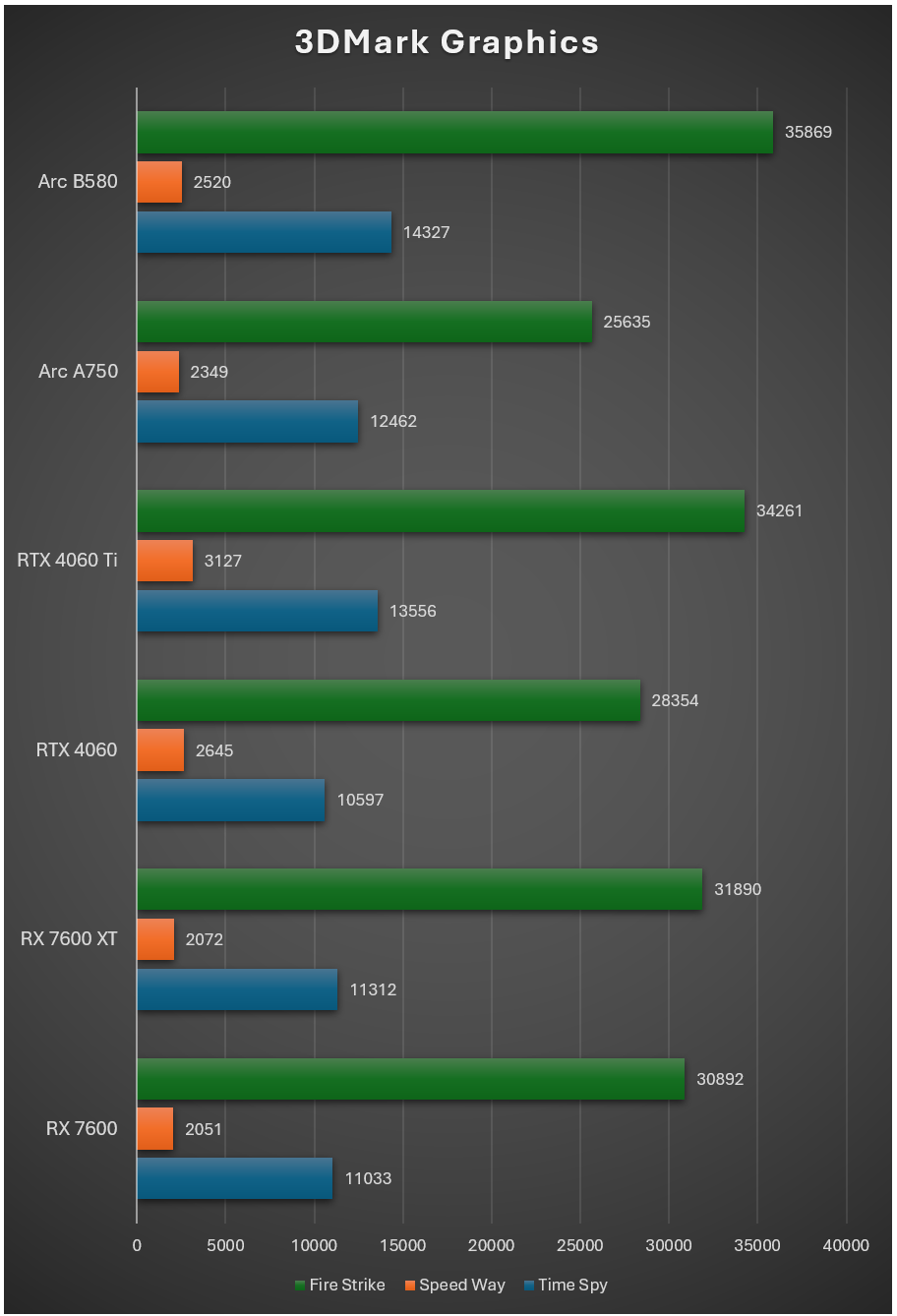

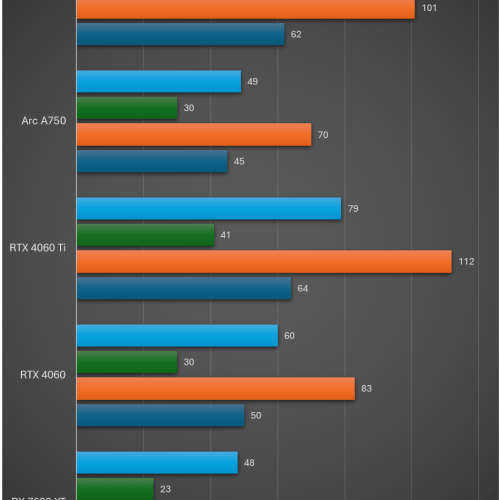

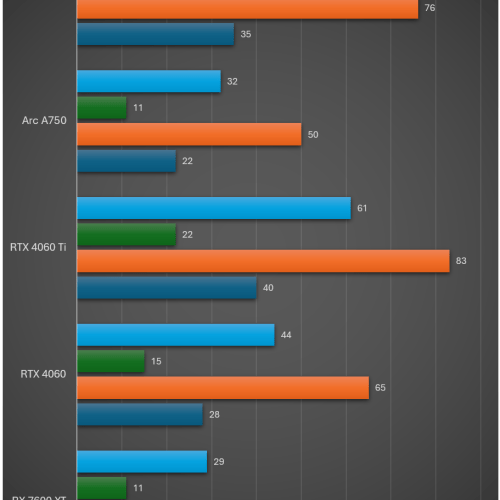

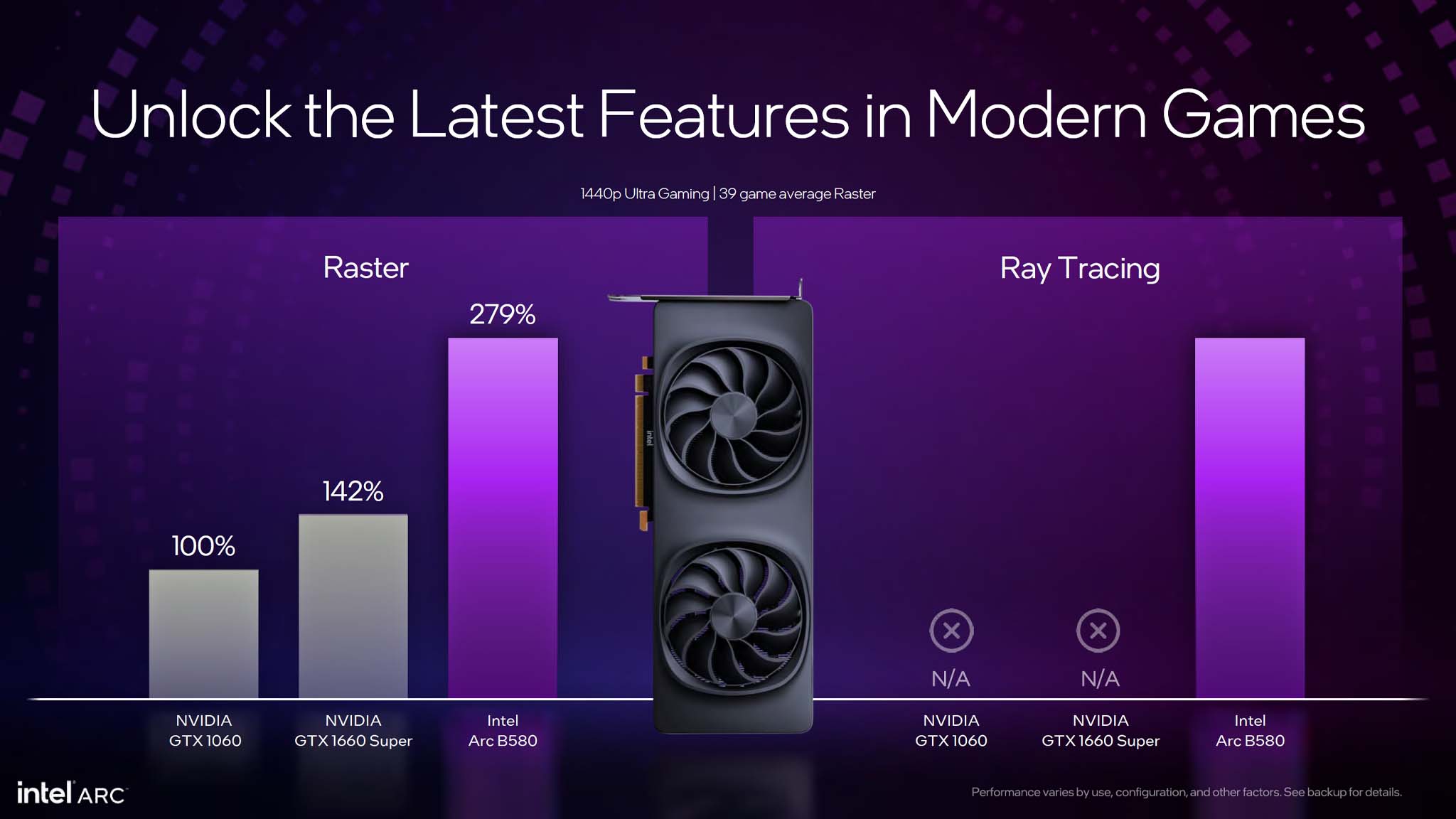

The Intel Arc B580 is positioned as a 1440p gaming card. At this resolution, the Arc B580 delivers a pretty good gaming experience, often outperforming its direct competitors, the RTX 4060 and RX 7600. On average, at Ultra settings, the Arc B580 is about 10% faster than the RTX 4060 and 46% faster than the RX 7600. Much of the difference is due to the higher memory bandwidth and 12GB of VRAM, which means the card doesn't get bogged down when rendering high-quality textures.

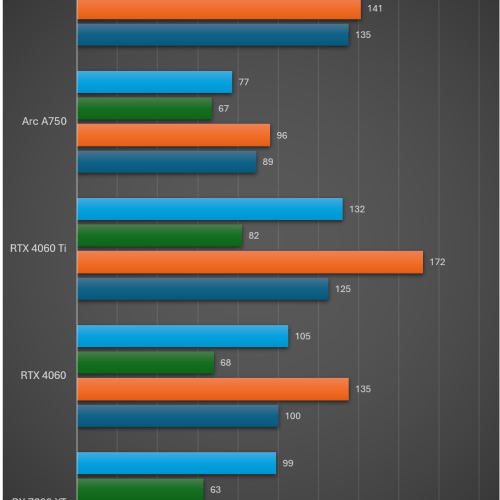

At 1080p resolution, the B580's advantage is narrowed, the reason is that the card is too powerful for the rendering requirements, so the CPU Overhead phenomenon becomes obvious, the performance is now limited by the CPU. The Arc B580 is only about 3% faster than the RTX 4060 and from 1% to 26% faster than the RX 7600 depending on the game and graphics settings at 1080p. The B580's performance is uneven, excelling in well-optimized games like Horizon Forbidden West. On the contrary, in games like Starfield or games based on the DirectX 11 API like Baldur's Gate 3, the Arc B580's performance is worse than its competitor, showing that the driver still needs further optimization.

The biggest surprise that the Intel Arc B580 brings is Ray Tracing performance. Thanks to the 2nd generation RTU architecture, the Arc B580 shows impressive ray tracing power compared to the cost of 249 USD. Testing Cyberpunk 2077 at 1440p resolution, Ray Tracing Ultra setting and XeSS enabled in Balanced mode, the B580 can achieve 60 FPS. This number is superior to the 49 FPS of the RTX 4060 and 29 FPS of the RX 7600 with the same settings.

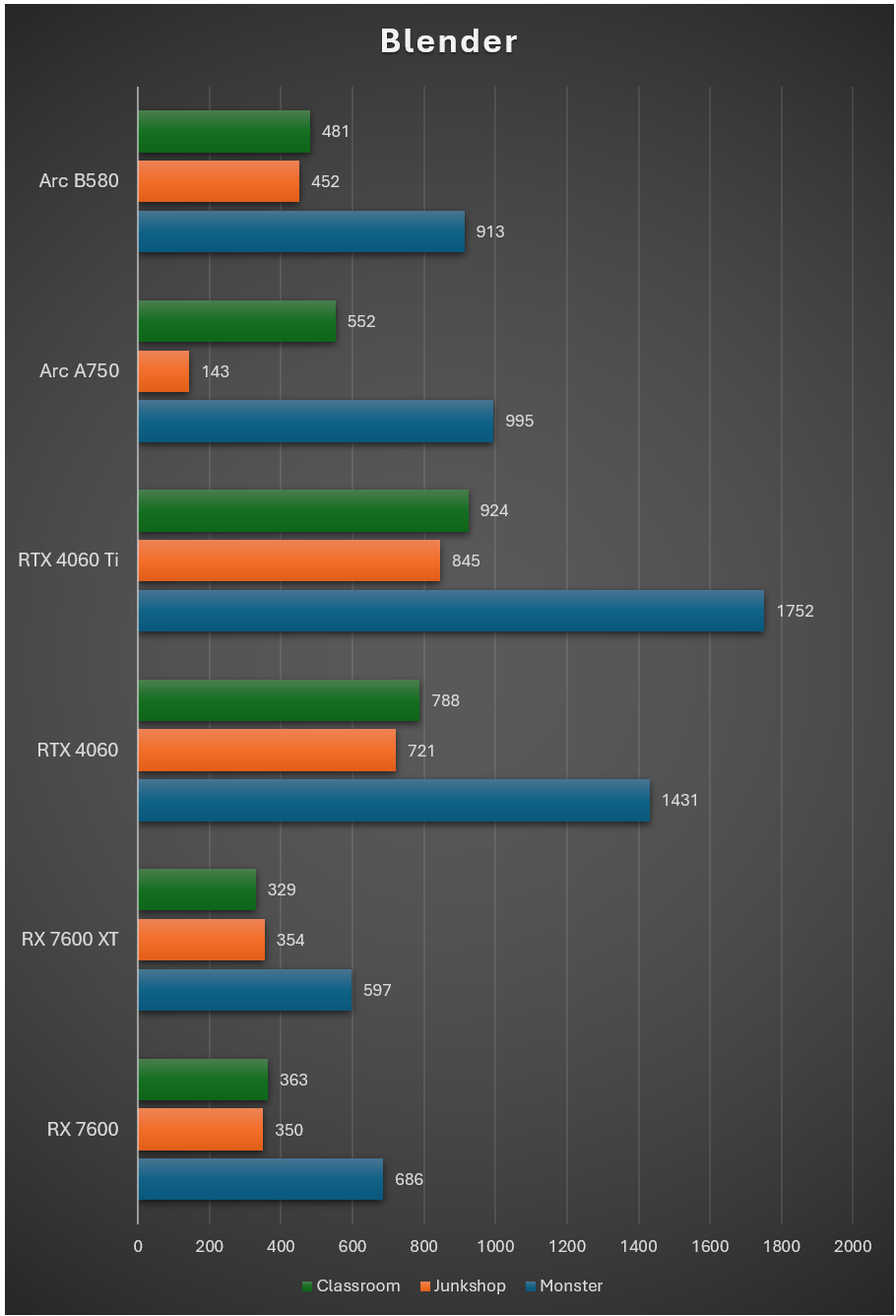

For content creation and AI, typically Unreal Engine, the Arc B580 delivers performance on par with the RTX 4060. With 50% more VRAM and a lower price, the Arc B580 is a value choice for game developers working with Unreal Engine. For heavy graphics effects in Adobe Premiere Pro and DaVinci Resolve, the Intel Arc B580 performs very well, matching or even surpassing the RTX 4060 Ti. For DaVinci Resolve AI tasks and RAW video processing, NVIDIA's CUDA ecosystem still dominates: the RTX 4060 delivers up to 43% faster AI performance than the B580.

Competitiveness with AMD and NVIDIA

In Q3 2025, the Intel Arc B580 will be at a slight disadvantage as its rival AMD Radeon RX 9060 XT has already been launched with certain improvements. Unfortunately, Migovi received the Intel Arc B580 model a bit late, nearly 8 months after the card was officially launched in the international market. AMD launched the Radeon RX 9060 XT in June 2025, with 2 options: 8 GB GDDR6 (MSRP $ 299) and 15 GB GDDR6 (MSRP $ 349). Test results show that the Radeon RX 9060 XT 16 GB has an average of 30-40% higher rasterization performance than the Arc B580 12 GB, 33% higher VRAM and supports FSR 4. The Radeon RX 9060 XT 8 GB version is also faster than the Arc B580 but has 50% less VRAM. Thanks to the new architecture, the RX 9060 XT has better power consumption than the Arc B580.

On the green team, NVIDIA launched the GeForce RTX 5050 in late June 2025, based on the Blackwell architecture with an MSRP of $249 and 8 GB of GDDR6 VRAM. The card uses a GB207 GPU with 2560 CUDA cores, a 128-bit memory bus width and a power consumption of 130 W. Real-world testing shows that the RTX 5050 is 3% slower than the Arc B580 in rasterization performance on average and even 7% slower than the RTX 4060. Compared to the Battlemage, the GeForce RTX 5050 only has the advantage of better power efficiency and a mature software ecosystem, especially DLSS 4 with Multi Frame Generation.

If the Intel Arc B580 hadn't launched in late 2024, the graphics market might have been different. Thanks to the competition that directly targets VRAM capacity and accessible pricing, NVIDIA was forced to launch the RTX 5050 8 GB, while AMD split the RX 9060 XT 8 GB and 16 GB options with different prices. The mainstream GPU war, which used to revolve mainly around performance and exclusive features, has now had to change. The advantage of the Arc B580 12 GB is clearly shown through new titles, typically Indiana Jones and the Great Circle. This title consumes nearly 11 GB of VRAM when running at standard 1080p resolution, making it difficult or even impossible to play for cards with a limited 8 GB of VRAM. In addition, the large VRAM also allows the game to be set to higher resolutions, enabling additional graphics settings while still being stable.

Who is the Intel Arc B580 for?

With a suggested price of 249 USD and in the Vietnamese market, variants from AiB partners are around 8 million VND, Intel Arc B580 will be a suitable choice for the following customers:

• Gamers building a new desktop PC for 1440p gaming on a budget: The Arc B580 offers the best performance/price ratio for 1440p gaming in the $250 price range, especially when paired with a new system using a modern CPU and motherboard.
• Users upgrading an old system need to consider carefully. If the system is too old and does not support Resizable BAR or is using an outdated CPU (Ryzen 3000 Series, Intel Core 10th generation or earlier), the performance of the B580 will not be able to be utilized due to the CPU Overhead issue. In this case, an option like the RTX 5050 may be safer, although the raw performance is slightly weaker than the B580.
• Content creators and semi-professionals: The Intel Arc B580 is a potential choice thanks to the power of the Xe Media Engine, especially the ability to encode AV1 and decode HEVC 4:2:2. However, there are still some instability and suboptimal performance in some professional applications, so you should also consult carefully.
